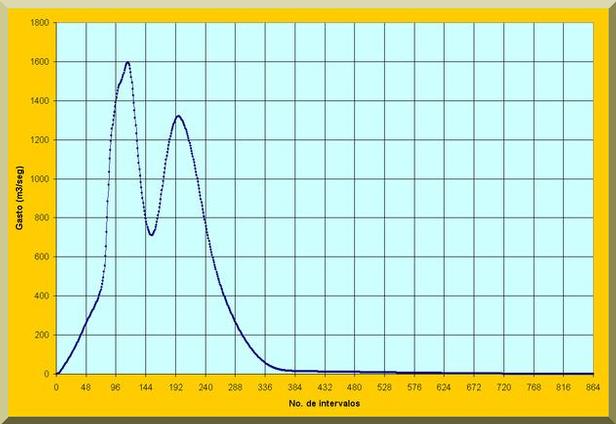

Flood hydrograph, 500-yr return period, downstream of the project, in m3/sec, at intervals of 7.5 min.

1	0.42	0.85	2.16	3.47	6.31	9.17	13.31	17.51	1
2	22.27	27.18	32.10	37.26	42.08	47.21	51.73	56.64	2
3	61.24	66.37	71.49	76.97	82.52	88.25	93.94	99.70	3
4	105.33	111.01	116.55	122.16	127.76	133.49	139.32	145.34	4
5	151.60	158.06	164.75	171.60	178.61	185.73	192.94	200.19	5
6	207.56	214.90	222.28	229.56	236.89	244.07	251.24	258.24	6
7	265.16	271.91	278.45	284.84	291.03	297.10	303.05	308.90	7
8	314.92	320.87	327.05	333.17	339.65	346.09	352.85	359.62	8
9	366.90	374.24	382.16	390.21	399.57	409.13	420.29	431.71	9
10	445.77	460.18	477.34	494.97	524.01	553.70	603.09	653.48	10
11	726.83	801.87	884.34	969.68	1034.34	1103.40	1145.61	1193.54	11
12	1221.97	1256.42	1276.52	1301.04	1321.29	1342.44	1368.12	1390.61	12
13	1415.35	1434.23	1452.31	1464.34	1475.31	1482.02	1489.69	1495.45	13
14	1502.98	1510.31	1520.26	1530.53	1542.61	1554.43	1566.67	1577.32	14
15	1586.52	1592.63	1595.78	1594.57	1589.43	1579.27	1564.59	1544.94	15
16	1520.77	1492.34	1460.76	1426.05	1389.41	1350.94	1311.73	1271.91	16
17	1232.28	1193.04	1154.67	1117.40	1081.45	1047.04	1014.22	983.13	17
18	953.77	926.16	900.37	876.26	853.93	833.19	814.14	796.59	18
19	780.54	765.98	752.91	741.39	731.47	723.24	716.88	712.34	19
20	709.97	709.55	711.39	715.25	721.16	729.08	738.87	750.56	20
21	763.91	778.94	795.40	813.27	832.39	852.55	873.72	895.55	21
22	918.02	940.76	963.78	986.74	1009.58	1032.07	1054.09	1075.56	22
23	1096.25	1116.24	1135.35	1153.64	1171.04	1187.54	1203.16	1217.83	23
24	1231.61	1244.42	1256.39	1267.37	1277.45	1286.60	1294.78	1302.08	24
25	1307.97	1313.03	1316.30	1318.80	1319.04	1318.53	1316.16	1313.00	25
26	1308.82	1303.77	1298.23	1291.72	1284.93	1277.09	1269.17	1260.20	26
27	1250.95	1240.74	1230.14	1218.74	1206.96	1194.56	1181.88	1168.72	27
28	1155.29	1141.45	1127.34	1112.82	1098.00	1082.78	1067.23	1051.29	28
29	1035.02	1018.39	1001.47	984.26	966.84	949.22	931.47	913.65	29
30	895.79	877.96	860.22	842.59	825.14	807.89	790.87	774.11	30
31	757.62	741.40	725.47	709.84	694.50	679.47	664.73	650.31	31
32	636.18	622.35	608.83	595.60	582.67	570.03	557.68	545.62	32
33	533.83	522.32	511.08	500.10	489.38	478.91	468.68	458.67	33
34	448.90	439.34	429.99	420.84	411.89	403.13	394.55	386.14	34
35	377.90	369.81	361.86	354.05	346.37	338.82	331.38	324.05	35
36	316.82	309.70	302.67	295.73	288.89	282.13	275.46	268.87	36
37	262.38	255.96	249.64	243.41	237.28	231.23	225.28	219.43	37
38	213.68	208.02	202.47	197.00	191.64	186.36	181.18	176.09	38
39	171.09	166.18	161.36	156.63	151.98	147.42	142.94	138.55	39
40	134.23	130.00	125.85	121.78	117.79	113.88	110.05	106.30	40
41	102.64	99.05	95.54	92.12	88.77	85.51	82.34	79.25	41
42	76.24	73.31	70.47	67.71	65.03	62.44	59.93	57.51	42
43	55.16	52.89	50.71	48.61	46.58	44.63	42.77	40.97	43
44	39.25	37.61	36.04	34.54	33.12	31.77	30.50	29.31	44
45	28.19	27.14	26.16	25.25	24.40	23.61	22.88	22.20	45
46	21.56	20.97	20.41	19.90	19.41	18.96	18.54	18.15	46
47	17.78	17.43	17.11	16.81	16.53	16.27	16.03	15.80	47
48	15.60	15.40	15.22	15.06	14.90	14.76	14.62	14.50	48
49	14.38	14.27	14.17	14.08	13.99	13.91	13.83	13.75	49
50	13.68	13.61	13.54	13.48	13.42	13.36	13.30	13.24	50
51	13.19	13.14	13.08	13.03	12.99	12.94	12.89	12.85	51
52	12.80	12.76	12.72	12.68	12.64	12.60	12.56	12.53	52
53	12.49	12.45	12.42	12.38	12.34	12.31	12.27	12.23	53
54	12.20	12.16	12.13	12.09	12.06	12.03	11.99	11.96	54
55	11.92	11.89	11.85	11.82	11.78	11.74	11.71	11.67	55
56	11.63	11.59	11.56	11.52	11.48	11.44	11.41	11.37	56
57	11.33	11.29	11.26	11.23	11.19	11.14	11.10	11.06	57
58	11.02	10.97	10.93	10.88	10.84	10.79	10.75	10.71	58
59	10.67	10.62	10.58	10.54	10.49	10.45	10.39	10.35	59
60	10.30	10.26	10.21	10.16	10.12	10.08	10.03	9.98	60
61	9.94	9.89	9.85	9.80	9.76	9.71	9.67	9.62	61
62	9.58	9.53	9.48	9.44	9.39	9.34	9.30	9.25	62
63	9.20	9.16	9.11	9.06	9.01	8.96	8.92	8.87	63
64	8.82	8.78	8.73	8.69	8.64	8.60	8.55	8.50	64
65	8.46	8.41	8.37	8.32	8.28	8.24	8.20	8.16	65
66	8.11	8.06	8.01	7.96	7.91	7.86	7.82	7.78	66
67	7.73	7.67	7.62	7.57	7.53	7.48	7.44	7.40	67
68	7.35	7.29	7.25	7.20	7.16	7.11	7.08	7.04	68
69	6.99	6.94	6.90	6.85	6.81	6.77	6.72	6.68	69
70	6.63	6.59	6.54	6.50	6.46	6.42	6.37	6.33	70
71	6.29	6.25	6.21	6.17	6.13	6.09	6.05	6.01	71
72	5.98	5.94	5.90	5.86	5.82	5.78	5.74	5.70	72
73	5.66	5.62	5.58	5.54	5.50	5.47	5.44	5.41	73
74	5.38	5.35	5.31	5.26	5.22	5.18	5.15	5.11	74
75	5.08	5.05	5.00	4.96	4.92	4.88	4.85	4.81	75
76	4.78	4.75	4.71	4.67	4.63	4.59	4.56	4.52	76
77	4.50	4.47	4.42	4.38	4.35	4.31	4.28	4.24	77
78	4.21	4.17	4.14	4.10	4.07	4.03	4.00	3.96	78
79	3.93	3.89	3.86	3.82	3.79	3.75	3.72	3.69	79
80	3.65	3.62	3.59	3.56	3.53	3.49	3.46	3.43	80
81	3.39	3.36	3.33	3.29	3.26	3.23	3.20	3.17	81
82	3.15	3.12	3.10	3.07	3.04	3.00	2.97	2.93	82
83	2.90	2.87	2.84	2.81	2.77	2.73	2.69	2.66	83
84	2.63	2.60	2.58	2.56	2.52	2.48	2.46	2.43	84
85	2.40	2.38	2.35	2.32	2.29	2.27	2.24	2.21	85
86	2.18	2.16	2.13	2.10	2.08	2.05	2.03	2.00	86
87	1.98	1.95	1.93	1.90	1.88	1.86	1.83	1.81	87
88	1.79	1.77	1.75	1.73	1.71	1.69	1.66	1.64	88
89	1.63	1.61	1.59	1.58	1.56	1.55	1.52	1.49	89
90	1.47	1.44	1.42	1.40	1.38	1.37	1.34	1.31	90
91	1.29	1.27	1.25	1.23	1.22	1.20	1.17	1.15	91
92	1.13	1.11	1.09	1.07	1.06	1.05	1.03	1.01	92
93	0.99	0.97	0.96	0.94	0.92	0.90	0.88	0.86	93
94	0.85	0.83	0.81	0.79	0.78	0.76	0.74	0.72	94
95	0.71	0.69	0.67	0.66	0.64	0.62	0.61	0.59	95
96	0.57	0.56	0.54	0.53	0.51	0.50	0.48	0.47	96
97	0.45	0.44	0.43	0.41	0.40	0.40	0.39	0.38	97
98	0.36	0.34	0.32	0.30	0.28	0.27	0.26	0.25	98
99	0.22	0.20	0.18	0.16	0.15	0.14	0.13	0.12	99
100	0.10	0.07	0.06	0.05	0.04	0.03	0.03	0.03	100
101	0.02	0.01	0.01	0.00	0.00	0.00	0.00	0.00	101
102	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	102
103	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	103
104	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	104
105	0.00	0.00	0.00	0.00	0.01	0.01	0.02	0.02	105
106	0.03	0.04	0.04	0.03	0.03	0.02	0.02	0.02	106
107	0.02	0.02	0.01	0.01	0.00	0.00	0.00	0.00	107
108	0.01	0.01	0.01	0.00	0.00	0.00	0.00	0.00	108
109	0.01	0.01	0.00	0.00	0.00	0.00	0.00	0.00	109
110	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	110
111	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	111
112	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.01	112
113	0.02	0.02	0.03	0.04	0.04	0.03	0.03	0.02	113
114	0.02	0.02	0.02	0.02	0.01	0.01	0.00	0.00	114
115	0.00	0.00	0.01	0.01	0.01	0.00	0.00	0.00	115
116	0.00	0.00	0.01	0.01	0.00	0.00	0.00	0.00	116
117	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	117
118	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	118
118	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	119
120	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	120
